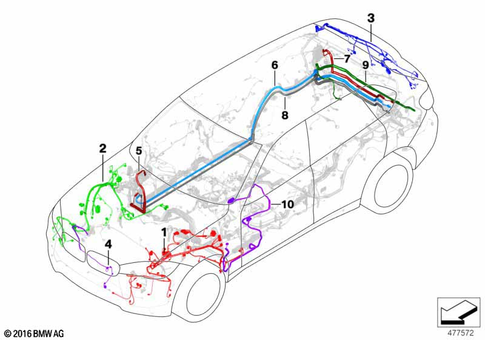

Scope of Repair Work Main Wiring Harness for 2015 BMW X5 35dX
No.

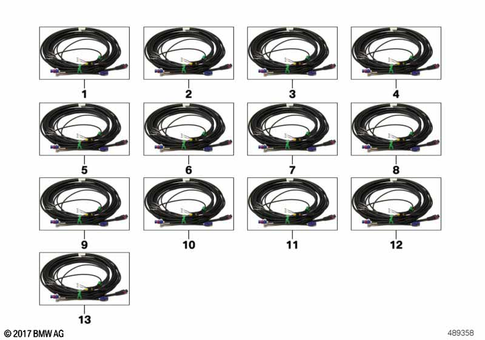

Part # / Description / Price
Price
1
Rep Module For Rear-View Camera
BMW
BMW Notes: For vehicles with reversing camera [S3aga (+)] includes the following connections: from A24*1S rearview camera to X382*1S kar audio, from R3*1B can terminals/star coupler, from X311*1V connector and to X706*1V connector.
MSRP $512.35 CAD
$461.12 CAD
MSRP $512.35 CAD
$461.12 CAD
2
Rep Module For Surround View BMW
BMW Notes: For vehicles with surround view [S5dla (+)] includes the following connections: from A259*2B camera harness to A24*2B rearview camera, X187*2S pdc converter, X28*1S body, driver's door, X5*1S body, front passenger door, X71*1V connector, Z2*6B power distribution box from to A259*2B from A259*1B camera network to X382*1S kar audio.
3
Rep Module For Night Vision Camera BMW
BMW Notes: For vehicles with night vision with human recognition [S6uka (+)] includes the following connections: A80*2B night vision camera to X4*1S night vision camera plug connection.
MSRP $394.14 CAD
$354.73 CAD
MSRP $394.14 CAD
$354.73 CAD
4
Rep Module For Rse Audio Cable BMW
BMW Notes: For vehicles with rear professional entertainment center [S6fha (+)] includes the following connections: from A42*5B head unit to A38*3B rear seat entertainment.
5
Rep Module For Rse Body Cable BMW
BMW Notes: For vehicles with rear professional entertainment center [S6fha (+)] includes the following connections: from A38*4B rear seat entertainment to X230*2B left seat lvds connector plug from A38*5B rear seat entertainment to X231*2B right seat lvds connector plug.
6
Rep Module For Head-Up Display BMW
BMW Notes: For vehicles with head-up display [S610A (+)] includes the following connections: from A71*3B cluster to A94*1B head-up display.
9
Rep Module For Camera, Audio BMW
BMW Notes: For vehicles with reversing camera [S3aga (+)] or surround view [S5dla (+)] includes the following connections: from X382*1B kar audio to A42*1B headunit.
10

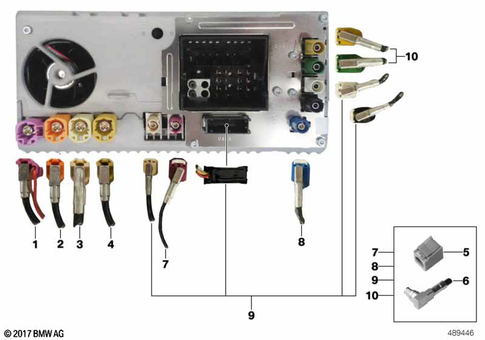

Rep.Module Basic Version Head Unit BMW
BMW Notes: For vehicles with tv function [S601A (-)] and navigation system professional [S609A (+)] includes the following connections: A42*10B head unit to A122*6B antenna diversity A42*16B head unit to X653 bluetooth aerial A42*6B head unit to X438*2B usb/aux power socket A42*9B head unit to A122*2B antenna diversity.
11

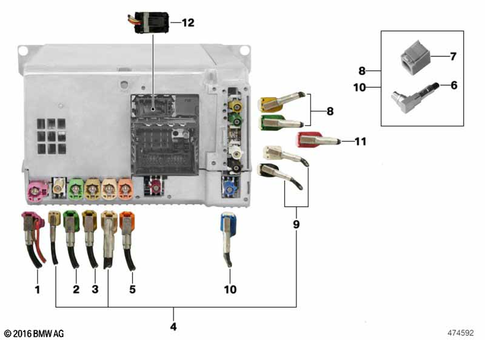

Rep Module, Head Unit/Cid BMW
BMW Notes: For vehicles with tv function [S601A (+)] or navigation system professional [S609A (+)] or preparation for navigation system [S6ufa (+)] includes the following connections: A42*4B head unit-A12*1B central information display.
12
Rep.Module Teleservices BMW
BMW Notes: For vehicles with tv function [S601A (-)] and navigation system professional [S609A (+)] and teleservices [S6aea (+)] includes the following connections: from A42*8B head unit to A231*2B telematic communication box and from A231*3B telematic communication box to E66*1B telephone backup antenna.
MSRP $374.46 CAD
$337.01 CAD
MSRP $374.46 CAD
$337.01 CAD
13
Rep Module, Camera-Based Driver Support BMW
BMW Notes: For vehicles with traffic congestion assistant [S5ara (+)] or driving assistant [S5asa (+)] or driving assistant plus [S5ata (+)] or active cruise control+stop&go function [S5dfa (+)] or road sign detection [S8tha (+)] includes the following connections: A56*2B camera-based driver support systems to A84*1B camera-based driver support camera.
